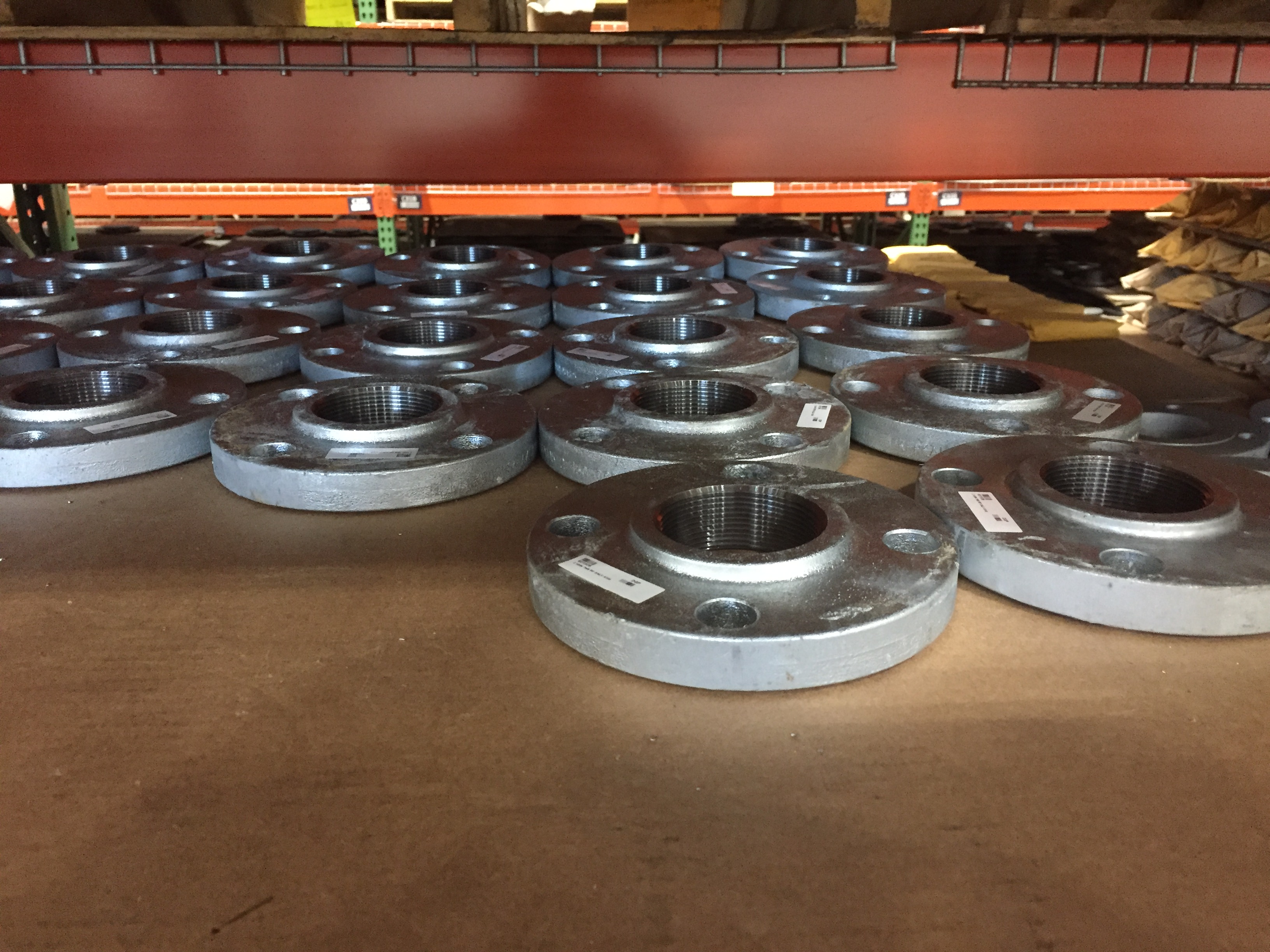

Flanges are essential components in piping systems, serving as connection points for pipes, valves, and other equipment. Two widely used standards for flanges are ANSI (American National Standards Institute) and DIN (Deutsches Institut für Normung). Understanding the differences between ANSI and DIN flanges is crucial for selecting the appropriate flange for specific applications.
What Are ANSI and DIN Flanges?
ANSI Flanges
ANSI flanges conform to the specifications set by the American National Standards Institute. They are widely used in North America and other regions and follow standards such as ANSI B16.5 and ANSI B16.47.
DIN Flanges
DIN flanges are based on the standards set by the Deutsches Institut für Normung, which is the German Institute for Standardization. These flanges are commonly used in Europe and follow standards such as DIN 2501 and DIN EN 1092-1.
Key Differences Between ANSI and DIN Flanges
Dimensional Differences
One of the primary differences between ANSI and DIN flanges is their dimensional specifications. ANSI and DIN standards specify different dimensions for flanges, including bolt hole spacing, flange thickness, and outer diameter.
Bolt Hole Patterns: ANSI flanges typically have a different number and arrangement of bolt holes compared to DIN flanges. This difference affects the compatibility and interchangeability of the flanges.
Flange Thickness: ANSI and DIN standards specify different thicknesses for flanges, which can impact the pressure ratings and structural integrity of the flange.
Pressure Ratings
ANSI and DIN flanges have different pressure ratings. ANSI flanges are rated in pounds per square inch (psi), while DIN flanges are rated in bars (1 bar ≈ 14.5 psi).
ANSI Pressure Classes: 150#, 300#, 600#, 900#, 1500#, and 2500#.
DIN Pressure Classes: PN6, PN10, PN16, PN25, PN40, PN64, and PN100.
Material Specifications
ANSI Materials: Carbon steel, stainless steel, and alloy steel.
DIN Materials: Carbon steel, stainless steel, and sometimes cast iron or ductile iron.
Manufacturing Standards
ANSI Standards: ANSI B16.5 and B16.47 provide detailed specifications for manufacturing and testing flanges.
DIN Standards: DIN EN 1092-1 and other DIN standards provide guidelines for manufacturing and testing DIN flanges.
Applications
ANSI Flanges
ANSI flanges are widely used in industries that follow American standards: oil and gas pipelines, refineries, and offshore platforms; chemical processing of hazardous and corrosive substances; power generation steam lines, cooling systems, and fuel supply lines; and water treatment filtration, purification, and distribution systems.
DIN Flanges
DIN flanges are commonly used in industries that adhere to European standards: petrochemical piping and equipment; food and beverage processing and packaging lines; pharmaceutical manufacturing; and HVAC systems compatible with European equipment.
FAQs
What are the main differences between ANSI and DIN flanges?
The main differences include dimensional specifications, pressure ratings, material specifications, and manufacturing standards. ANSI flanges follow American standards, while DIN flanges adhere to European standards.
How are ANSI flanges rated compared to DIN flanges?
ANSI flanges are rated in pounds per square inch (psi), with common pressure classes like 150#, 300#, and 600#. DIN flanges are rated in bars, with classes such as PN10, PN16, and PN40.
Can ANSI and DIN flanges be used interchangeably?
Generally, ANSI and DIN flanges are not interchangeable due to differences in dimensions, bolt hole patterns, and pressure ratings. Compatibility should be verified before attempting to interchange them.
Conclusion
Understanding the differences between ANSI and DIN flanges is crucial for selecting the right flange for specific applications. While both standards provide reliable and robust flanges, the choice between them depends on regional preferences, industry standards, and specific application requirements. By considering the dimensional differences, pressure ratings, material specifications, and manufacturing standards, engineers can make informed decisions to ensure the safety and efficiency of their piping systems.
